API 5L X65 PSL2 LSAW Line Pipe Manufacturer Specialized in X52 X65 PSL2 for High-Pressure Transmission

API 5L X65 PSL2 (LSAW / JCOE)

3PE FBE Coated for Oil Gas
Engineered for High-Pressure Transmission (PSL2 Standard)

Grade: API 5L X65 PSL2 (Yield Strength ≥ 450 MPa).

Process: JCOE LSAW (Longitudinal Submerged Arc Welding).

Safety: -20°C Impact Test Guaranteed for extreme environments.

Size Range: 20" - 48" (508mm - 1219mm) with Heavy Wall options.

Coating: 3LPE / FBE available for anti-corrosion.

Quantity:

Contact Now

1. Product Definition: Engineered for Critical Pipelines

Safety is non-negotiable when transporting high-pressure gas.
Our API 5L X65 PSL2 LSAW Line Pipe is specifically manufactured for long-distance oil & gas transmission and offshore applications. Unlike standard welded pipes, we use the advanced JCOE (Longitudinal Submerged Arc Welding) process to ensure superior geometric accuracy and weld integrity.
Core Grade: API 5L X65 PSL2 (Yield Strength ≥ 450 Mpa)
Manufacturing Process: JCOE / LSAW
Key Feature:-20°C Impact Test Guaranteed for extreme cold environments.
Primary Use: High-pressure gas transmission, Offshore jacket legs, Slurry pipelines.

2. The JCOE Process Advantage (Why it matters?)

Why do we use the JCOE process instead of traditional rolling? Because it guarantees Perfect Roundness.

J-ing: The steel plate is pressed into a"J"shape.
C-ing: It is further pressed into a"C"shape.
O-ing: Finally formed into an"O"shape.
E-xpanding (Mechanical Expansion): This is the most critical step. We expand the pipe from the inside to eliminate residual stress and ensure the diameter tolerance is within ± 2mm.
Result: A pipe that is perfectly round, making on-site welding much faster and safer.

3. Technical Superiority: Why Choose PSL2 over PSL1?

Many suppliers offer cheap PSL1 pipes, but they are unsafe for high-pressure gas. Here is why you need our PSL2pipes:

Feature	API 5L PSL1 (Standard)	API 5L PSL2 (Our Product)
Application	Low Pressure Water/Oil	High Pressure Gas / Subsea
Impact Test (CVN)	Not Required	Mandatory (-20°C / 0°C)
Fracture Toughness	Low risk tolerance	High resistance to brittle fracture
Chemical Composition	Loose limits	Strict Carbon Equivalent (CE) limits
Weldability	Standard	Excellent (Easy for field welding)

4. One-Stop Anti-Corrosion Solutions

LSAW pipes are valuable assets. We don't ship them naked. We provide integrated coating services in our factory:

3LPE (3-Layer Polyethylene): The standard for buried pipelines. Service temp -40°C to 80°C.
FBE (Fusion Bonded Epoxy): Excellent adhesion and chemical resistance.
Concrete Weight Coating (CWC): For subsea pipelines to provide negative buoyancy (keep the pipe on the ocean floor).

5. Strict Quality Control (QC)

We welcome Third Party Inspection (TPI) from SGS, BV, or DNV. Our internal QC includes:

100% Ultrasonic Testing (UT): Checks the weld seam and the full pipe body.
100% X-Ray (RT): Digital radiography for weld seams.
Hydrostatic Testing: Each pipe is tested at 100% specified pressure for 10 seconds.

🚀 Project Inquiry Guide

LSAW pipes are usually made-to-order. Production time is typically 45-60 days. To get an accurate quote for your project tender, please click the button below and provide:

Steel Grade: (e.g., API 5L X65 PSL2)
Size: (e.g., 24 inch x 14.27mm)
Quantity: (Total Length in Meters)
Coating Requirement: (e.g., 3LPE)

👉[Request Official Quotation for LSAW Pipe]

1. Dimensional Precision & Manufacturing Range

Our LSAW pipes are produced using the advanced JCOE (Jing-forming, C-forming, O-forming, Expansion) process, which ensures the highest level of dimensional accuracy and minimal residual stress.

Outer Diameter (OD): 24" (610 mm) – 48" (1219 mm) — Ideal for large-scale energy trunklines.
Wall Thickness (WT): 12.7 mm (0.500") – 25.4mm} (1.000") — Covering SCH 20, STD, SCH 40, SCH 80, and XS requirements.
Precision Length: 11.8m – 12.2m — Fixed lengths optimized for automated orbital welding systems and efficient 40ft HQ container logistics.
Geometric Tolerance: * Out-of-Roundness: ≤ 1.0% of OD (Ensures perfect alignment for field welding).
- Straightness: ≤ 0.2% of total length.
- Bevel End Angle: 30° (+5°, -0°) with a root face of 1.6mm (±0.8mm)$.

2. Technical Superiority: PSL1 vs. PSL2

We specialize in API 5L PSL2 (Product Specification Level 2), which is mandatory for high-risk, high-pressure, and offshore environments where material failure is not an option.

Feature	API 5L PSL1 (Standard)	API 5L PSL2 (Our Premium Range)	Why it Matters
Impact Test	Not Required	Mandatory (CVN at -20℃ or 0℃)	Prevents brittle fracture in low-temperature or high-stress environments.
Chemistry (CEq)	No Strict Limit	Strict Pcm ≤ 0.25 or CE ≤ 0.43	Guarantees excellent field weldability and minimizes heat-affected zone (HAZ) cracking.
Yield/Tensile Ratio	Not Specified	Maximum ≤ 0.93	Ensures the pipe has sufficient ductility to withstand soil movement or seismic activity.
Inspection (NDT)	Basic/Sampling	100% UT (Ultrasonic) + RT (Radiographic)	100% verification of the longitudinal weld seam for zero internal defects.
Hydrostatic Test	Standard Pressure	Higher Test Pressure & Duration	Ensures 100% leak-proof performance under maximum operating pressures.
Application	Low-pressure Water/Structural	High-Pressure Gas / Offshore / Sour Service	Critical for safety-sensitive energy infrastructure.

3. Material Grades & Mechanical Properties (Specially for X52, X60 & X65) Our production facility supports a comprehensive range of steel grades to meet various topographical and chemical challenges, with a special focus on API 5L X52, X60 and X65 PSL2.

Mechanical Properties Comparison (PSL2 Standard):

Grade(API 5L / ISO 3183)	Yield Strength (Rt0.5)	Tensile Strength (Rm)	Applications
API 5L X52	≥ 360 MPa (52,200 psi)	≥ 460 MPa (66,700 psi)	General Oil & Gas Transmission
API 5L X60	≥ 415 MPa (60,200 psi)	≥ 520 MPa (75,400 psi)	Medium-High Pressure Transmission
API 5L X65	≥ 450 MPa (65,300 psi)	≥ 535 MPa (77,600 psi)	High Pressure / Offshore / Sour Service
API 5L X70	≥ 485 MPa (70,300 psi)	≥ 570 MPa (82,700 psi)	Extreme High Pressure Lines

Chemical Composition for X65 PSL2 (Maximum Limits): Strict control of chemical elements ensures excellent weldability.

Element	Carbon (C)	Manganese (Mn)	Phosphorus (P)	Sulfur (S)	Carbon Equivalent (CEiiw)
Max %	≤ 0.12%	≤ 1.60%	≤ 0.025%	≤ 0.015%	≤ 0.43%

4. Quality Assurance & Testing Protocols

To guarantee the longevity of your project, every pipe undergoes rigorous testing:

Mechanical Tests: Tensile, Flattening, Guided-bend, and Charpy V-Notch Impact tests.
100% Non-Destructive Testing (NDT): Including Automatic Ultrasonic Testing (AUT) of the weld seam and X-Ray inspection of pipe ends.
Surface Inspection: 100% visual and dimensional check for laminations or surface imperfections.
Certification: Full MTC (Mill Test Certificate) issued according to EN 10204 3.1 or 3.2 (Lloyd's, BV, or SGS witness).

Ensuring the structural integrity and surface quality of our LSAW pipes during long-distance international transit is our top priority. We implement a multi-layered protection strategy:

1. Precision End Protection & Preparation

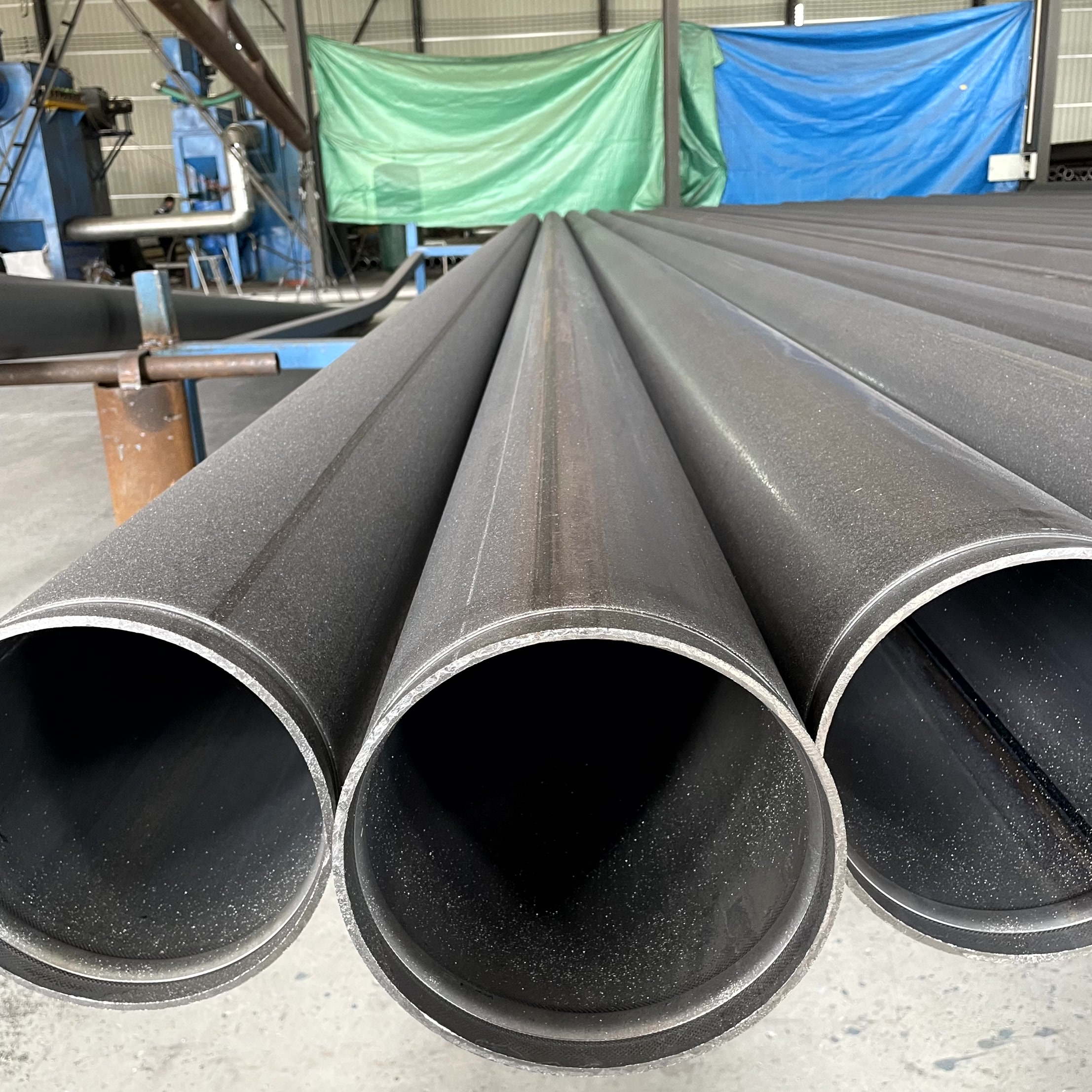

Standard Beveling: Pipes are precision-beveled to a 30° (+5°/-0°) angle with a 1.6mm (±0.8mm) root face, ready for immediate on-site welding.
Heavy-Duty Protectors: Unlike standard plastic caps, we use Heavy-Duty Recessed Metal Protectors or Steel-Reinforced Plastic Caps. These are designed to withstand high-impact collisions during crane loading, ensuring the welding face remains defect-free.
Rust Prevention: Beveled ends are treated with a clear, weldable anti-corrosion wax to prevent flash rusting without requiring cleaning before welding.

2. Advanced Surface Protection Options

We offer customized coating solutions based on your project’s storage duration and environmental exposure:

Option A: Temporary Protection (Black Varnish): A high-quality, quick-drying bituminous coating that provides effective rust resistance during sea transit and short-term site storage.

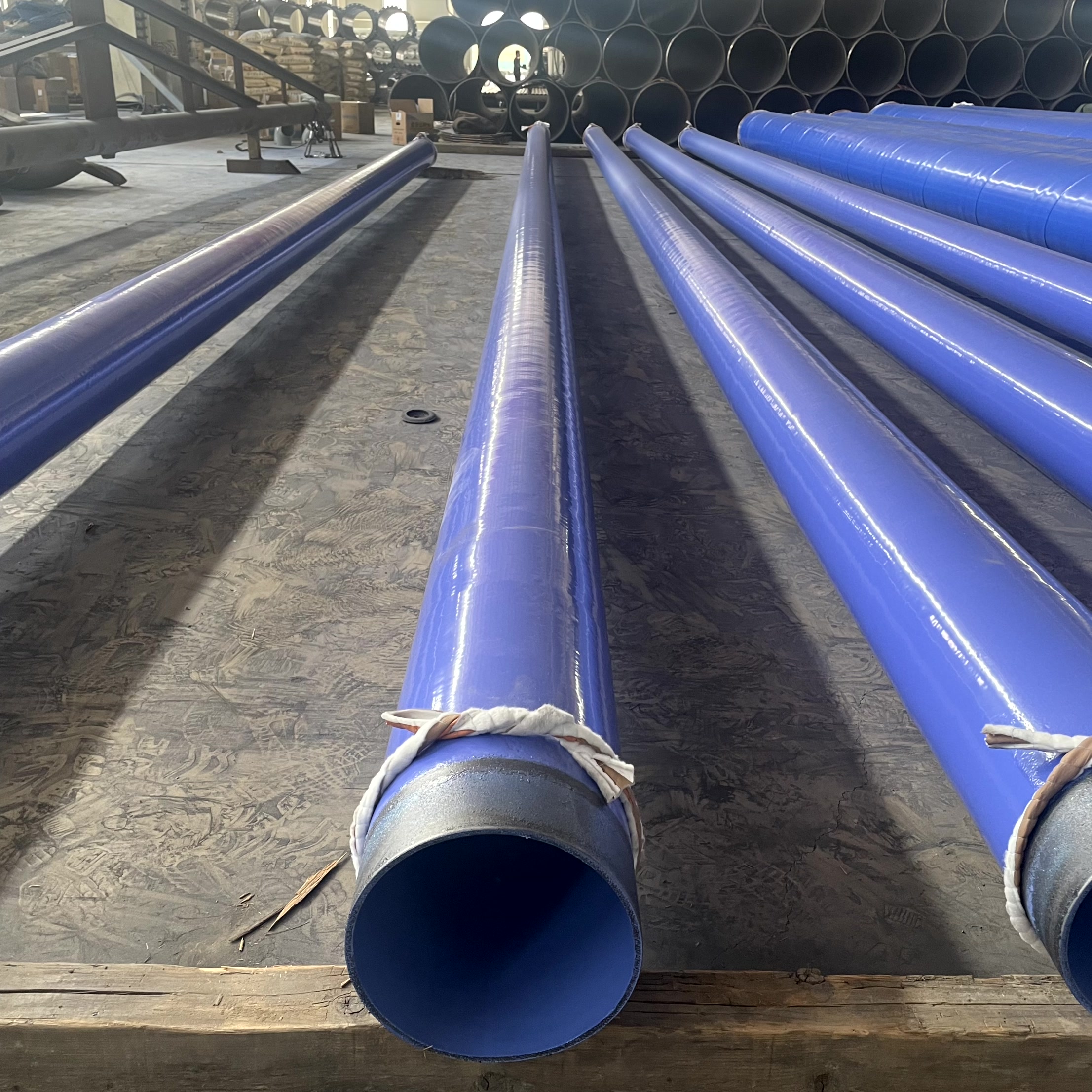

Option B: Long-Term Anti-Corrosion (3LPE / 3LPP / FBE): For burial or offshore use, we provide multi-layer Polyethylene/Polypropylene coating. We include padded strapping and extra-thick separators to ensure the coating remains scratch-free during handling.
Internal Lining: Optional Liquid Epoxy Lining to maintain internal smoothness and prevent internal corrosion from moisture.

3. Professional Loading & Logistics Safety

Our logistics team follows a strict "Zero-Damage" protocol for container and bulk vessel loading:

Spreader Beam Lifting: We exclusively use specialized non-marking spreader beams and nylon slings. This prevents "point-loading" stress, which can cause bending or ovality in heavy-wall LSAW pipes.

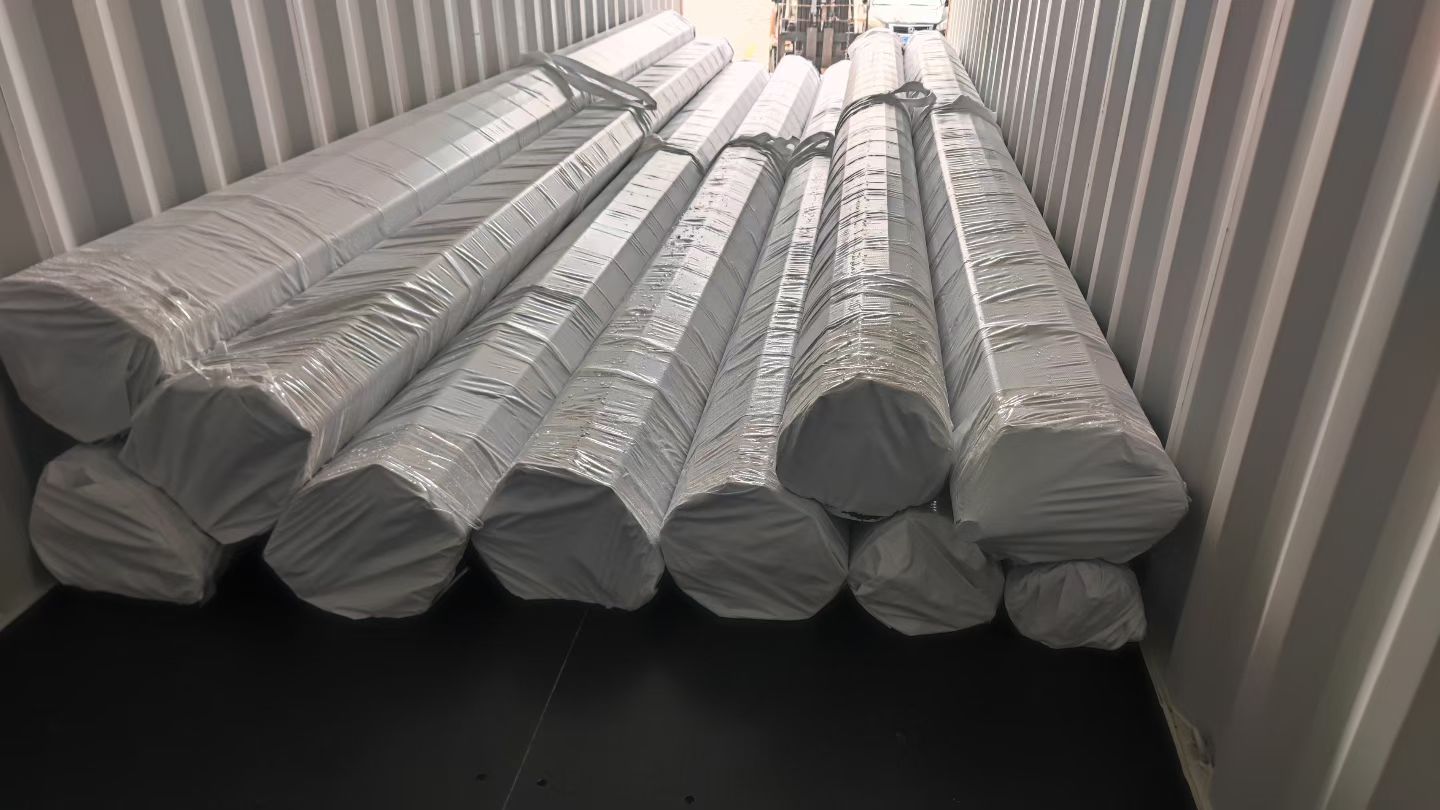

Strategic Securing (Dunnage & Bracing): * In-Container: Pipes are secured using customized wooden dunnage, chocks, and heavy-duty steel strapping to prevent shifting during rough sea conditions.
- Bulk Vessel: We implement "tier-nesting" with rubber or timber separators between layers to eliminate metal-to-metal contact.
Custom Length Optimization: Our 11.8m - 12.2m fixed lengths are specifically designed to maximize the space of 40ft High Cube containers, reducing shipping costs for our clients while ensuring a secure fit.

Professional Anti-Corrosion Solutions for Longevity We provide a wide range of external and internal coating services to extend the lifespan of pipelines in harsh environments (Offshore, Underground, Acidic Soil).

3LPE / 3LPP (3-Layer Polyethylene/Polypropylene):
- Standard: DIN 30670, CSA Z245.21, ISO 21809-1.
- Ideal for: Underground buried pipelines, providing superior mechanical protection and aging resistance.
FBE (Fusion Bonded Epoxy):
- Standard: AWWA C213, CSA Z245.20.
- Features: Excellent adhesion to steel, resistant to cathodic disbondment. Dual-layer FBE available for extra protection.
Internal Flow Efficiency Coating:
- Standard: API RP 5L2.
- Benefit: Reduces friction for gas transmission, increasing flow efficiency and lowering pumping costs.
CWC (Concrete Weight Coating) & Bitumen: Available upon request for offshore/marine projects.

Why Choose Cangtie? Real Factory, Real Strength. Don't risk your project with traders. Buy directly from the LSAW manufacturer.

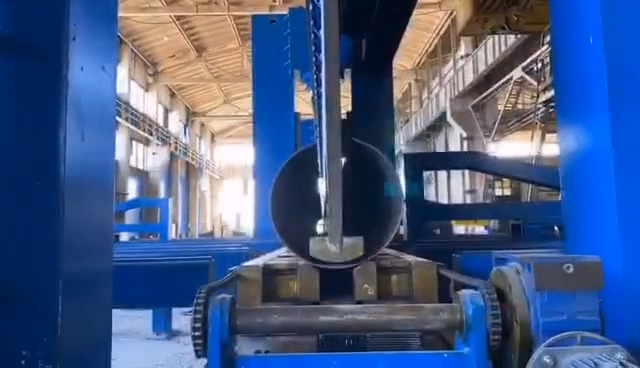

1. Massive Production Capacity (200,000 Tons/Year) We are not just a supplier; we are a Tier-1 Manufacturer.

Production Lines: Advanced JCOE manufacturing lines capable of handling large-scale orders simultaneously.
Annual Output: Exceeding 200,000 tons of LSAW steel pipes.
Benefit to You: Stable supply for mega-projects, ensuring no delays in your construction schedule.

2. 5,000+ Tons Ready Stock for Urgent Needs We understand that some projects cannot wait 60 days.

Ready Inventory: We maintain a standing stock of 5,000+ tons of API 5L pipes.
Common Grades: Grade B, X42, X52, X65 available in standard sizes (24" - 48").
Speed: Stock items can be inspected and shipped within 7 days.

3. Proven Global Track Record Our pipes have been successfully delivered to major Oil & Gas projects across the Middle East, Southeast Asia, and South America.

Project Compliance: We strictly follow Shell, PDO, and CNPC vendor specifications.
Third-Party Inspection: 100% acceptance of TPI from SGS, BV, DNV, and Moody.
Zero Rejection: To date, we maintain a 0% rejection rate on site due to welding defects.

4. Optimized Lead Time & Logistics Time is money. Our integrated production management system ensures efficiency.

Standard Production: 45-60 Days for made-to-order LSAW pipes (faster than the industry average of 75 days).
Logistics: Our factory is located near the port, and we have a dedicated team for container loading (checking referencing our "Packing" tab for details).

5. Factory Direct Price By removing the middlemen and trading companies:

You get the bottom-line factory price.
Direct communication with our technical engineers, not just sales reps.

Click Here to Get Official Quotation
